Client Case Study: CAD Engineering and Serial CNC Machining for Flat-Pack Campervan Kits

Industrial Case Study: From CAD Engineering to Serial Production of Modular Nomad Furniture

How do you engineer and mass-produce vehicle layouts that are modular, durable, and shippable via standard parcels? Manufacturing wooden fit-out kits for the brand INOKO clearly demonstrates ALCYDE's expertise as an engineering design bureau and precision CNC machining workshop in Toulouse.

The Industrial Challenge: Combining Modularity, Material Yield, and Parcel Logistics

To satisfy the demanding requirements of removable campervan furniture, ALCYDE resolved three key engineering hurdles right from the design phase:

• Assembly Modularity: Designing robust mechanical joints that adapt to multiple vehicle geometries without expensive manual fitting on site.
• Material Optimization (Nesting): Optimizing every square centimeter of raw sheet material (Birch plywood, technical lightweight Poplar) to drastically minimize scrap rates and keep unit costs under control.
• Standard Parcel Shipping: Developing component nesting that allows full dismantled kits to fit inside standard express parcel templates (DPD, Chronopost), eliminating heavy freight surcharges.

Step 1: CAD Engineering & ALCYDE Design Office

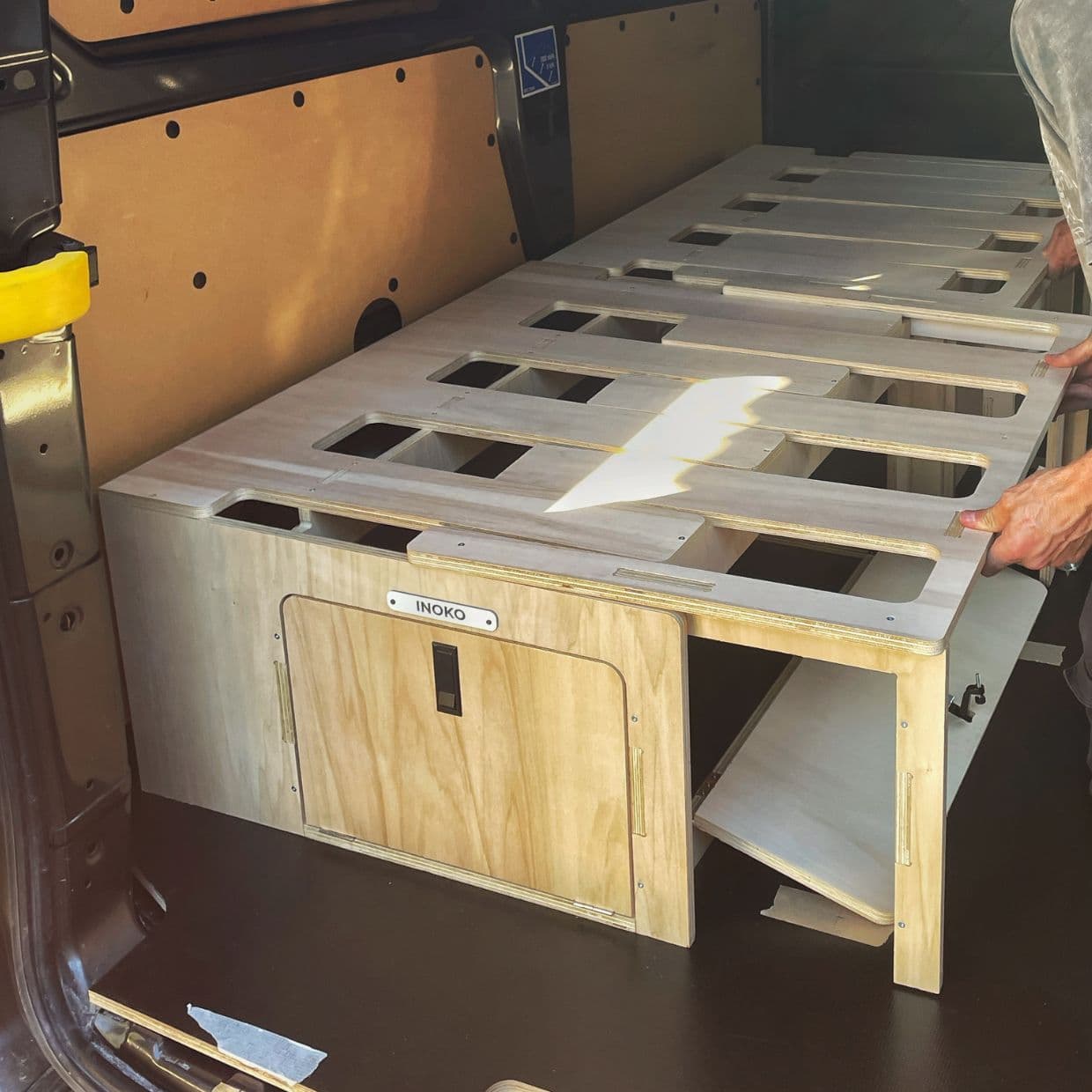

The full mechanical assembly was engineered and stress-tested in-house on our 3D CAD stations. Each panel, upright, and crossbar features CNC-machined mortise-and-tenon joints for immediate self-centering during final assembly.

This upfront work underpins serial profitability:

• Strategic Multi-Sheet Nesting: Automated layout algorithms maximize raw sheet utilization and keep timber waste to a minimum.

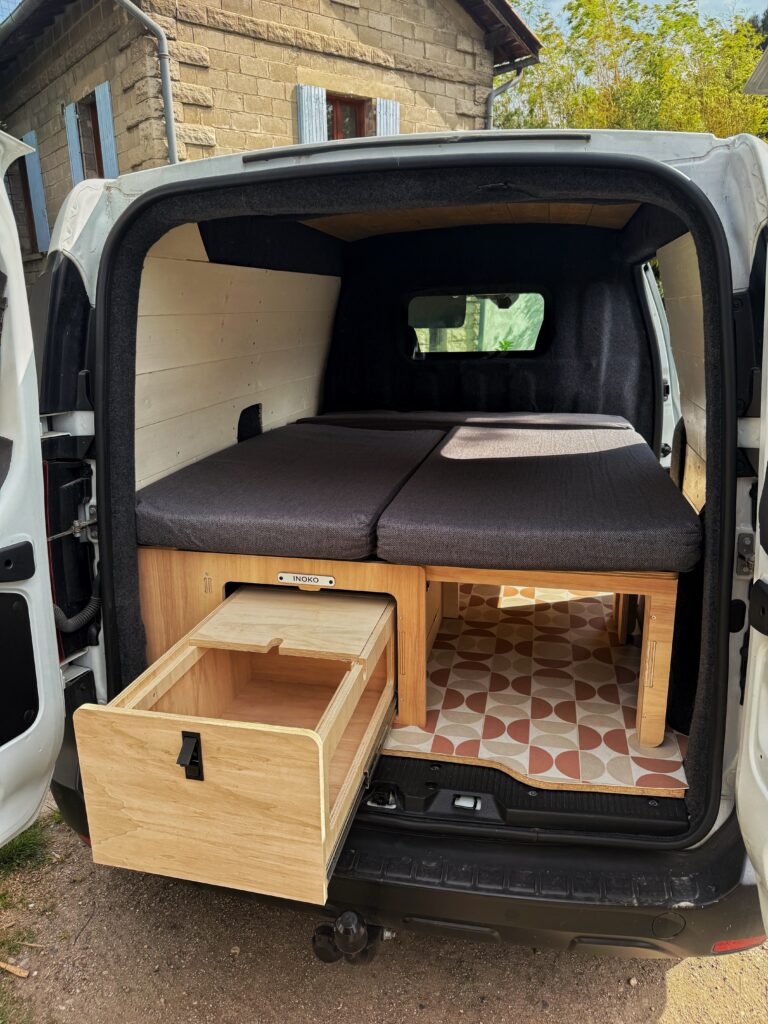

• Full "Flat-Pack" Conception: Every furniture module (including expandable slatted beds) breaks down into perfectly stackable flat components, optimizing workshop storage and logistics footprint.

Step 2: High-Speed CNC Machining & Workshop Finishing

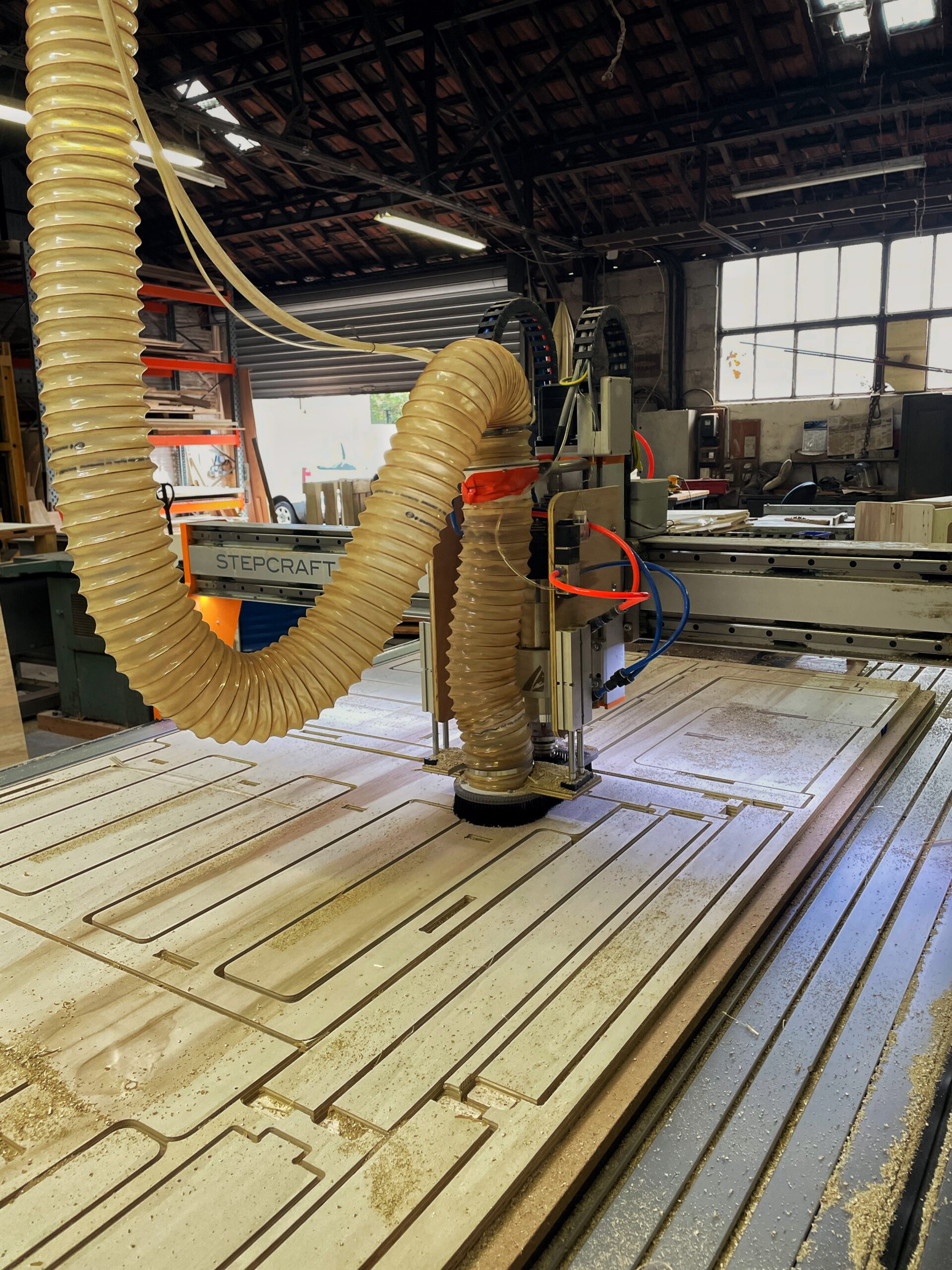

Once CAM toolpaths were validated, our Toulouse CNC machining facility handled serial production on large-format industrial CNC routers:

• Micrometric Repeatability: Essential for mortises and tenons to slide together smoothly with zero binding, ensuring effortless assembly by end customers.
• Integrated Sanding & Deburring: Edge softening and surface sanding are built straight into our production workflow, delivering clean, ready-to-finish components.

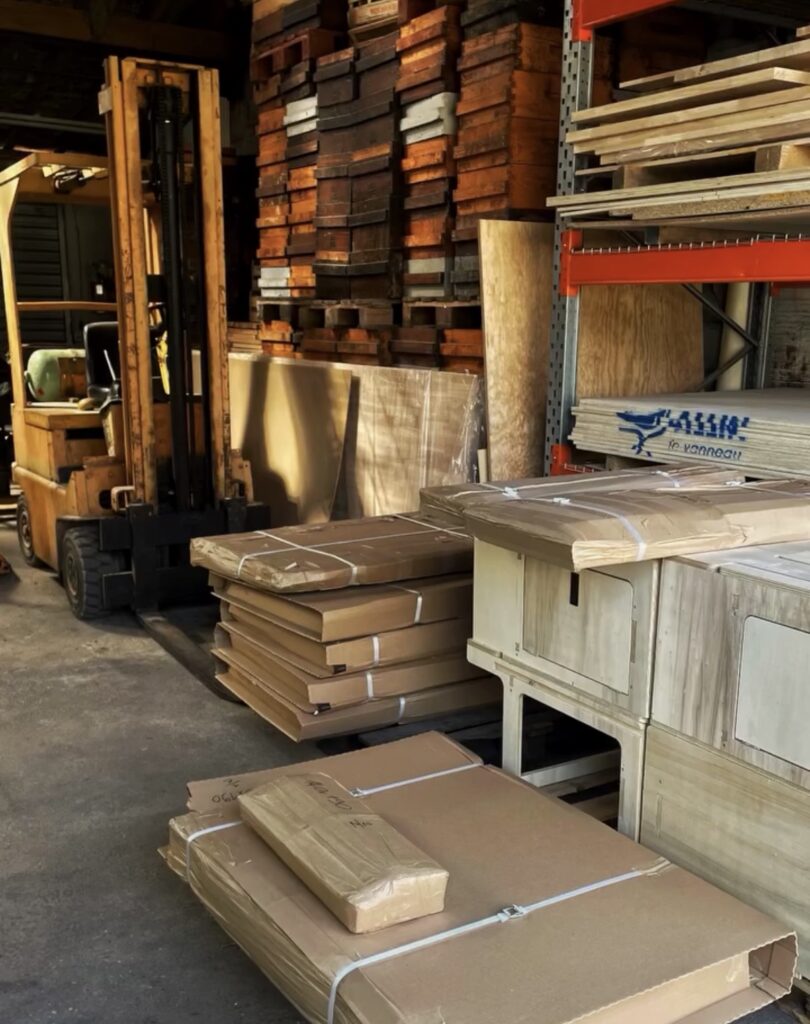

Step 3: Flat-Pack Packaging and Logistics Preparation

The commercial viability of an online furniture brand rests upon standardized delivery.

Thanks to the modular standardization engineered by ALCYDE in 3D, all kit components (even wide sleeping platforms) were sized to comply with parcel network limits:

• Optimized Unit Weight: Careful selection of technical plywood grades balancing light weight and mechanical strength.
• Edge Protection: Custom packaging design safeguarding all machined edges against transport handling shocks.

ALCYDE: Your Industrial Partner for Wood Machining & Series Production

This case study proves ALCYDE's capability to act as the dedicated R&D engineering office and manufacturing backbone for furniture brands, sports equipment, and architectural joinery.

Are you developing a wooden furniture line, nomad vehicle kits, or an e-commerce product?
From 3D CAD optimization to serial CNC nesting and individual part labeling, our workshop delivers reliable manufacturing power for your business.
